Modeling Phase¶

Introduction¶

The Modeling Phase focuses on defining how a system is structured and behaves to satisfy its requirements. It bridges the gap between the problem domain and the implementation domain, providing visual representations that make complex designs easier to understand, communicate, and maintain.

During this phase, several diagrams are used to represent different perspectives of the system:

Class Diagrams – Depict the static structure of the system, including its classes, attributes, methods, and relationships.
Sequence Diagrams – Illustrate the dynamic flow of interactions between objects over time.

Each diagram contributes to a comprehensive understanding of both the structural and behavioral aspects of the system.

Note

The naming conventions for classes, attributes, and methods used in these diagrams are language-agnostic. The same applies to data types (for example, String is used instead of std::string or string). This abstraction ensures that the design can be applied across multiple programming languages and paradigms without being tied to a specific implementation syntax.

Class Diagram¶

This class diagram represents a transportation system that includes both autonomous robotaxis and traditional human-driven taxis. It shows how various entities interact and relate to each other through inheritance, composition, aggregation, and association. The model captures the structural organization of a ride-hailing service supporting both autonomous and human-operated vehicles.

Note

All classes in the domain layer are organized within the transportation namespace, providing logical grouping and preventing naming conflicts with other system components.

Tip

UML and modeling tools use diverse notations to express specific characteristics of classes, methods, and attributes. Understanding these conventions ensures that diagrams convey both structure and semantics accurately.

Abstract Classes: In PlantUML, an abstract class is represented by the letter A inside a circle. Other modeling tools may use different notations; for instance, Mermaid uses the <<abstract>> stereotype (see Mermaid class diagrams). Regardless of the notation style, abstract classes must always be explicitly indicated in class diagrams to distinguish them from concrete classes. Example of an abstract class in PlantUML:
```
abstract class Dummy {
  ...
}
```
Abstract Methods: Abstract methods (called pure virtual functions in C++) are typically displayed in italics or annotated with the {abstract} label. In PlantUML, abstract methods are explicitly marked with {abstract} preceding the method name. These methods have no implementation in the abstract class and must be overridden by concrete subclasses. Example of an abstract method in PlantUML:
```
class Dummy {
  + {abstract} method(): void
}
```
Virtual Methods: Virtual methods (those that can be overridden by derived classes) may not have distinct notations in every tool. They are often documented textually or marked with a stereotype. In C++, these correspond to methods declared with the virtual keyword that have a base implementation but may be redefined by subclasses.
```
class Dummy {
  + {virtual} method(): void
}
```
Static Attributes: Static (class-level) attributes shared by all instances are shown underlined in standard UML notation. In PlantUML, the same can be expressed using the {static} modifier or underlining the attribute name. Static attributes belong to the class itself, not to any individual instance. Example of a static attribute in PlantUML:
```
class Dummy {
  + {static} id: String
}
```
Static Methods: Static methods—class-level operations that do not require an instance—are also shown underlined in UML. In PlantUML, they can be denoted with {static} or by underlining the method name. Static methods can be invoked directly from the class.
```
class Dummy {
  + {static} method(): void
}
```
Constant Attributes: Constants or read-only attributes are frequently marked with {readOnly} or written in uppercase (e.g., MAX_PASSENGERS). In C++, these correspond to const or static const members that cannot be modified after initialization.
```
class Dummy {
  + {readOnly} max_passengers: Integer
}
```
Visibility Modifiers: UML applies standardized symbols to denote access levels:
- + → Public (accessible from anywhere)
- - → Private (accessible only within the class)
- # → Protected (accessible within the class and its subclasses)

These conventions ensure that class diagrams communicate not only the structure of a design but also the intended behavior and scope of its members: clarifying which methods can be invoked, which attributes are shared, and how access is controlled across classes.

Key Components¶

Vehicle (Abstract Class)¶

Purpose: Defines the general structure and behavior common to all vehicle types in the transportation system.
Namespace: transportation
Attributes:
- id : String - Unique vehicle identifier for tracking and fleet management
- currentLocation : Location - Current geographic position of the vehicle
- status : VehicleStatus - Current operational state (IDLE, IN_SERVICE, EN_ROUTE, CHARGING, MAINTENANCE, OUT_OF_SERVICE)
- route : Route - Navigation route the vehicle is currently following (optional)
- maxPassengers : Integer - Maximum number of passengers the vehicle can accommodate
- currentPassengerCount : Integer - Number of passengers currently in the vehicle
Operations:
- {abstract} drive() : void — Executes vehicle movement; must be implemented by subclasses to define type-specific driving behavior
- updateLocation(location : Location) : void — Updates the vehicle’s current geographic position
- getStatus() : VehicleStatus — Returns the current operational status of the vehicle
- setRoute(route : Route) : void — Assigns a navigation route to the vehicle
- getRoute() : Route — Retrieves the currently assigned route
- pickupPassenger(passenger : Passenger) : void — Adds a passenger to the vehicle and updates passenger count
- dropoffPassenger(passenger : Passenger) : void — Removes a passenger from the vehicle and updates passenger count

Note

The Vehicle class is abstract, meaning it cannot be instantiated directly. It provides a consistent interface for all concrete vehicle types and manages core operations like passenger handling and route following.

Concrete Vehicle Types¶

All concrete vehicle types reside in the transportation namespace and inherit from Vehicle.

RoboTaxi
- Purpose: Represents an autonomous, self-driving taxi that uses sensors for navigation and operation.
- Additional Attributes:
  - sensors : List<Sensor> – Collection of sensors for autonomous navigation and safety (composition)
- Operations:
  - drive() : void – Implements autonomous driving behavior using sensor data
  - addSensor(sensor : Sensor) : void – Adds a sensor to the robotaxi’s sensor array
The RoboTaxi specializes the Vehicle class by adding autonomous capabilities through integrated sensor systems. It manages its own navigation without human intervention.
Taxi
- Purpose: Represents a traditional human-operated taxi with a driver.
- Additional Attributes:
  - driver : Driver – The human driver operating this taxi
- Operations:
  - drive() : void – Implements human-driven operation behavior
  - assignDriver(driver : Driver) : void – Assigns a driver to this taxi
  - removeDriver() : void – Removes the current driver from this taxi
  - getDriver() : Driver – Returns the driver currently assigned to this taxi
The Taxi specializes the Vehicle class by adding driver management capabilities. It requires a human driver for operation.

Driver¶

Namespace: transportation
Purpose: Represents a human driver who operates traditional Taxi vehicles.
Attributes:
- id : String – Unique driver identifier
- name : String – Driver’s full name
- licenseNumber : String – Driver’s license number
- rating : Float – Driver’s performance rating
Operations:
- getId() : String – Returns the unique driver identifier
- getName() : String – Returns the driver’s name
- getLicenseNumber() : String – Returns the driver’s license number
- getRating() : Float – Returns the driver’s rating
Relationship: Association (-->) with Taxi. A Taxi is operated by a Driver. The relationship indicates that a Taxi may have 0 or 1 Driver at any given time, supporting scenarios where taxis are temporarily unassigned.

Sensor¶

Namespace: transportation
Attributes:
- sensorId : String – Unique sensor identifier
- sensorType : SensorType – Type of sensor (LIDAR, CAMERA, RADAR, GPS, IMU)
- positionOnVehicle : Position – Physical mounting position on the vehicle (composition)
Operations:
- readData() : SensorData – Reads current sensor data for navigation and obstacle detection
- calibrate() : void – Performs sensor calibration procedure
- getType() : SensorType – Returns the type of sensor
- getSensorId() : String – Returns the unique sensor identifier
Relationship: Composition (*--) with RoboTaxi. A robotaxi contains one or more sensors; if the robotaxi is destroyed, the sensors are destroyed as well. This enforces that autonomous vehicles have integrated sensor systems for navigation and safety.
Purpose: Represents sensor hardware for autonomous navigation, obstacle detection, and situational awareness in robotaxis.

Important

Encapsulation Rule: External actors cannot interact directly with Sensors. All sensor operations are managed internally by the RoboTaxi, which processes sensor data for navigation decisions.

Position (Struct)¶

Namespace: transportation
Attributes:
- x : Double – X-coordinate of the sensor mounting position on the vehicle
- y : Double – Y-coordinate of the sensor mounting position on the vehicle
- z : Double – Z-coordinate of the sensor mounting position on the vehicle
Relationship: Composition (*--) with Sensor. Each sensor has a position that defines where it is mounted on the vehicle.
Purpose: Represents the 3D mounting location of sensors on the vehicle body for precise sensor fusion and calibration.

Fleet¶

Namespace: transportation
Attributes:
- id : String – Unique fleet identifier
- operatorName : String – Name of the fleet operating company
- serviceArea : List<Location> – Geographic regions where fleet operates
- vehicles : List<Vehicle> – Collection of vehicles managed by the fleet (both RoboTaxi and Taxi)
Operations:
- addVehicle(vehicle : Vehicle) : void — Adds a vehicle to the fleet inventory
- removeVehicle(vehicle : Vehicle) : void — Removes a vehicle from the fleet
- getAvailableVehicles() : List<Vehicle> — Returns all idle vehicles ready for dispatch
- dispatchVehicle(pickup : Location, dropoff : Location) : Vehicle — Assigns an available vehicle to service a ride request
- getId() : String — Returns the unique fleet identifier
- getOperatorName() : String — Returns the name of the fleet operator
Relationship: Aggregation (o--) with Vehicle. The fleet manages vehicles but does not own them; vehicles exist independently and can be transferred between fleets or operate independently. This applies to both autonomous RoboTaxis and human-driven Taxis.

Passenger¶

Namespace: transportation
Attributes:
- id : String – Unique passenger identifier
- name : String – Passenger’s name
- phoneNumber : String – Contact phone number
- currentVehicle : Vehicle – The vehicle the passenger is currently riding in (if any)
Operations:
- requestRide(pickup : Location, dropoff : Location) : void — Requests a ride from the fleet specifying pickup and dropoff locations
- getId() : String — Returns the unique passenger identifier
- getName() : String — Returns the passenger’s name
Relationship: Association (-->) with Vehicle and Fleet. A passenger rides in zero or one vehicle at any given time (temporary relationship). A passenger requests rides from a fleet (zero or more passengers can make requests).

Route¶

Namespace: transportation
Attributes:
- id : String – Unique route identifier
- waypoints : List<Location> – Ordered list of locations defining the navigation path
Operations:
- addWaypoint(location : Location) : void – Adds a waypoint to the route
- optimizeRoute() : void – Optimizes the route for efficiency
- getDistance() : Double – Calculates and returns total route distance
- getId() : String – Returns the unique route identifier
- getWaypointCount() : Integer – Returns the number of waypoints in the route
Relationship: Composition (*--) with Location for waypoints. A route consists of one or more waypoints; waypoints are integral to the route definition. Association (-->) with Vehicle – a vehicle may follow zero or one route at any time.
Purpose: Defines navigation paths for vehicles, supporting both single trips and multi-stop routes.

Location¶

Namespace: transportation
Attributes:
- latitude : Double – Geographic latitude coordinate
- longitude : Double – Geographic longitude coordinate
Operations:
- distanceTo(other : Location) : Double – Calculates distance to another location
- getLatitude() : Double – Returns the latitude coordinate
- getLongitude() : Double – Returns the longitude coordinate
Relationship: Used by Route (waypoints), Vehicle (currentLocation), and Fleet (serviceArea).
Purpose: Represents geographic coordinates for navigation, service boundaries, and positioning.

Enumerations¶

SensorType
- Values: LIDAR, CAMERA, RADAR, GPS, IMU
- Purpose: Defines the types of sensors that can be installed on a RoboTaxi
- Relationship: Each Sensor has a SensorType that determines its data format and capabilities
VehicleStatus
- Values: IDLE, IN_SERVICE, EN_ROUTE, CHARGING, MAINTENANCE, OUT_OF_SERVICE
- Purpose: Defines the operational states a vehicle can be in
- Relationship: Each Vehicle has a VehicleStatus that determines its availability and current operation

Conceptual Analysis¶

Dual Vehicle Types: The design supports both autonomous (RoboTaxi) and human-operated (Taxi) vehicles through a common Vehicle abstraction. This enables mixed fleets and flexible deployment strategies.
Encapsulation of Behavior: The RoboTaxi encapsulates sensor management internally. External actors (Passenger, Fleet) only interact with the Vehicle interface, never with Sensors directly. This promotes abstraction and separation of concerns, and enforces the technical constraint that sensors cannot be accessed directly.
Polymorphism: Concrete vehicles (RoboTaxi, Taxi) provide type-specific implementations of drive() and specialized operations, enabling dynamic behavior depending on the vehicle type at runtime. The Fleet can manage both vehicle types uniformly through the Vehicle interface.
Optional Relationships: The Route association is optional; a vehicle can operate without being assigned a route (e.g., idle, charging). Similarly, a Passenger may or may not be riding in a vehicle at a given time. For instance, a Passenger waiting for the vehicle to arrive is not currently riding the vehicle. A Taxi may not have a Driver during off-hours or between shifts.
Ownership Hierarchy:
- RoboTaxi owns Sensors — composition (sensors are integral parts of the autonomous vehicle).
- Sensor owns Position — composition (position is an integral property of sensor placement).
- Route owns Waypoints (Locations) — composition (waypoints define the route).
- Fleet manages Vehicles — aggregation (vehicles can exist independently of fleet).
- Vehicle follows Route — association (optional relationship).
- Passenger rides in Vehicle — association (temporary relationship).
- Taxi operated by Driver — association (driver can be assigned/unassigned).
Fleet Management: The Fleet provides centralized management of all vehicle types, including dispatch logic, availability tracking, and service area management. This separates vehicle lifecycle from ride operations and enables unified management of heterogeneous vehicle types.

Performance Requirements¶

Note

Performance Constraints:

Sensor readData() operations complete within 50 ms per sensor
Route optimizeRoute() completes within 500 ms for routes with up to 20 waypoints
Fleet dispatch operations complete within 100 ms
Fleet maintains 99.9% availability during operational hours
All ride events (requests, dispatches, passenger boarding/exiting) are logged with timestamps and location data

Summary¶

This class diagram demonstrates several key object-oriented principles:

Abstraction through the abstract Vehicle class supporting multiple vehicle types.
Inheritance and polymorphism in specialized vehicle types (RoboTaxi, Taxi).
Encapsulation of functionality within cohesive classes.
Composition for sensors that are integral parts of robotaxis and for sensor positions.
Aggregation for fleet management where vehicles maintain independent lifecycles.
Association for optional relationships (routes, passengers, drivers).
Clear separation of concerns between passengers, fleet management, vehicle operations, driver management, navigation, and sensing.
Support for hybrid fleets containing both autonomous and human-driven vehicles.

Overall, the design offers modularity, flexibility for extension to new vehicle types, and a realistic mapping between software classes and transportation entities, while satisfying both functional and non-functional requirements.

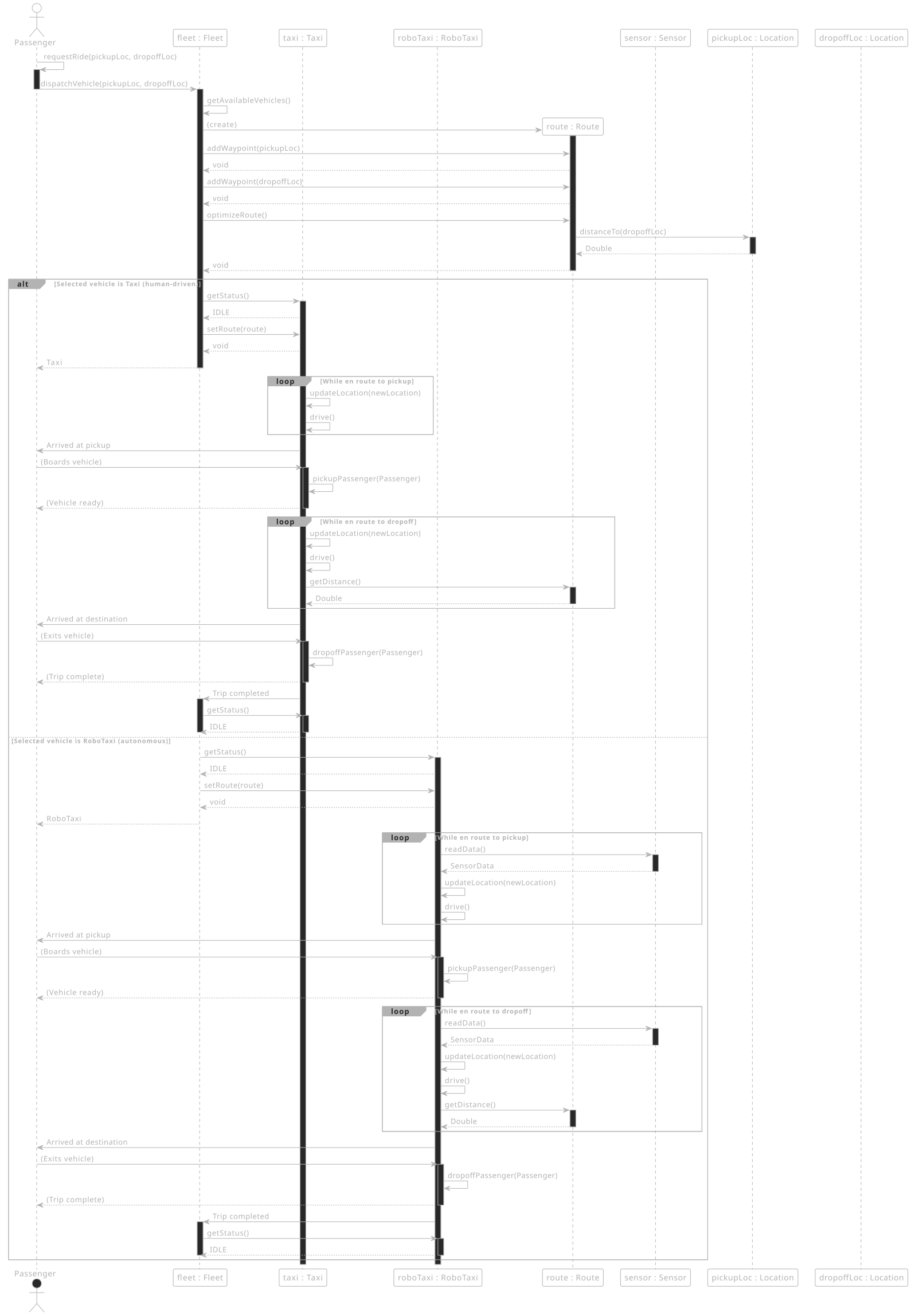

Sequence Diagram¶

The Sequence Diagram captures the dynamic interaction between objects over time. It illustrates how messages are passed, which operations are invoked, and how control flows through the system to accomplish a specific ride request and completion.

Participants¶

All participants belong to the transportation namespace in the implementation:

Passenger – Customer requesting and using ride services; initiates ride requests.
Fleet – Manages vehicle inventory and dispatches vehicles to service ride requests.
RoboTaxi (Vehicle) – Autonomous vehicle that navigates routes and transports passengers.
Route – Provides navigation path with waypoints for vehicle to follow.
Sensor – Continuously provides data for navigation and obstacle detection.
Location – Represents geographic coordinates (pickupLoc, dropoffLoc) for pickup, dropoff, and navigation waypoints.

Message Flow¶

Passenger requests a ride from the Fleet.
- Passenger calls dispatchVehicle(pickupLoc, dropoffLoc) on the Fleet.
- Fleet queries available vehicles by calling getAvailableVehicles() on itself.
- Fleet checks vehicle status by calling getStatus() on the RoboTaxi.
- RoboTaxi returns its status (IDLE), indicating availability.
Fleet creates and assigns a route.
- Fleet creates a new Route object with a unique route ID.
- Fleet adds the pickup location as a waypoint: addWaypoint(pickupLoc).
- Fleet adds the dropoff location as a waypoint: addWaypoint(dropoffLoc).
- Fleet optimizes the route by calling optimizeRoute().
- Route calculates distances using distanceTo() method on Location objects.
- Fleet assigns the optimized route to the RoboTaxi via setRoute(route).
- Fleet returns the dispatched taxi to the Passenger.
RoboTaxi navigates to pickup location.
- While en route to pickup (loop construct):
  - RoboTaxi continuously reads sensor data by calling readData() on each Sensor.
  - Sensor returns SensorData for navigation and obstacle detection.
  - RoboTaxi updates its current location by calling updateLocation(newLocation) on itself.
  - RoboTaxi executes driving behavior by calling drive() on itself.
- Loop continues until RoboTaxi arrives at pickup location.
- RoboTaxi notifies Passenger of arrival.
Passenger boards the vehicle.
- Passenger physically boards the vehicle (actor action).
- RoboTaxi calls pickupPassenger(Passenger) on itself to update its state.
- Vehicle status updates to IN_SERVICE and passenger count increments.
- RoboTaxi confirms readiness to Passenger.
RoboTaxi navigates to dropoff location.
- While en route to dropoff (loop construct):
  - RoboTaxi continues reading sensor data via readData().
  - Sensor returns SensorData for continued safe navigation.
  - RoboTaxi updates its location via updateLocation(newLocation).
  - RoboTaxi executes driving behavior via drive().
  - RoboTaxi queries route distance via getDistance() to monitor progress.
  - Route returns the distance value.
- Loop continues until RoboTaxi arrives at dropoff location.
- RoboTaxi notifies Passenger of arrival at destination.
Passenger exits and trip completes.
- Passenger physically exits the vehicle (actor action).
- RoboTaxi calls dropoffPassenger(Passenger) on itself to update its state.
- Passenger count decrements and vehicle prepares for next assignment.
- RoboTaxi confirms trip completion to Passenger.
- RoboTaxi notifies Fleet that trip is completed.
- Fleet updates vehicle status to IDLE by calling setStatus(IDLE) on the RoboTaxi.

Control Constructs¶

loop [While en route to pickup]: RoboTaxi continuously reads sensor data and updates location until it reaches the pickup point.
loop [While en route to dropoff]: RoboTaxi navigates to the destination, reading sensors, updating location, and monitoring route progress.
object creation: Route object is created dynamically during the ride request process.
activation boxes: Show when objects are actively processing operations (fleet dispatch, route optimization, sensor reading, vehicle navigation).

Key Interactions¶

The sequence diagram highlights several important interactions:

Synchronous communication: Most operations are synchronous with immediate return values (getStatus, setRoute, addWaypoint).
Continuous monitoring: Sensor reading and location updates occur continuously in loops during navigation.
State transitions: Vehicle status changes from IDLE → EN_ROUTE → IN_SERVICE → IDLE throughout the trip lifecycle.
Self-collaboration: RoboTaxi frequently calls methods on itself (updateLocation, drive, pickupPassenger, dropoffPassenger) to manage its internal state.
Distance calculation: Route optimization uses Location’s distanceTo() method to calculate optimal paths.
Passenger-initiated actions: Boarding and exiting are physical actions by the Passenger that trigger state updates in the RoboTaxi.

Observability¶

All key lifecycle events are logged with structured information:

Ride requests (passenger ID, pickup/dropoff locations, timestamp)
Vehicle dispatches (fleet ID, vehicle ID, route ID, timestamp)
Route creation and optimization (route ID, waypoint count, optimization time)
Passenger boarding/exiting (passenger ID, vehicle ID, location, timestamp)
Sensor readings (vehicle ID, sensor type, timestamp, data quality metrics)
Trip completion (vehicle ID, route ID, total distance, duration)

Summary¶

The sequence diagram complements the class diagram by showing the runtime collaboration of objects during a complete ride lifecycle. It clarifies the responsibilities of each component:

The Passenger initiates ride requests and physically boards/exits vehicles.
The Fleet manages vehicle dispatch, route creation, optimization, and post-trip status updates.
The RoboTaxi (Vehicle) executes autonomous navigation using sensor data, follows assigned routes, and manages passenger state transitions.
The Sensor provides continuous data for safe autonomous navigation.
The Route defines the navigation path through waypoints and supports distance calculations.
The Location represents geographic coordinates for all spatial operations.

The interaction pattern demonstrates proper encapsulation (sensors only accessed by RoboTaxi), clear separation of concerns (fleet management vs. vehicle operations), and realistic autonomous vehicle behavior patterns. Together, the class and sequence diagrams provide a complete behavioral and structural model of the transportation system that satisfies both functional requirements and non-functional requirements (performance, safety, observability).
