Assignment 3

  • Title: Robot Kinematics and Control

  • Course: ENPM702 - Introductory Robot Programming

  • Work Mode: Individual

  • Duration: 1.5 weeks

  • Due Date: 11/05/2025

  • Total Points: 36

  • Language Standard: C++17

Changelog

Version 1.2.0 (2025-10-30)

  • Simplified the terminal output

  • Removed shared pointer. Only use std::unique_ptr

  • Updated the pseudocode for lambdas. Both lambdas must be created in the main() function

Assignment Overview

This assignment integrates modern C++17 programming constructs (templates, lambdas, and smart pointers) with fundamental robotics concepts. You will build a simplified 2-DOF planar robot arm controller that demonstrates how software models, plans, and manages a robot’s motion.

You will:

  • Represent robot states and end-effector positions using Plain Old Data (POD) structs.

  • Implement forward kinematics to compute the end-effector pose from joint angles.

  • Generate a smooth linear trajectory between two configurations.

  • Apply a velocity-limit filter using a lambda callable.

  • Manage memory safely using smart pointers under the RAII principle.

The assignment emphasizes clear structure, modularity, and adherence to the C++ Core Guidelines.

Guidelines

This assignment is to be completed individually, and all instructions must be followed carefully. Not adhering to these guidelines may result in a zero for the assignment.

  • Do not use solutions or components created by others.

  • Keep your work private; do not share your files or code.

  • Any GitHub repository used for development must be private.

  • You may discuss general concepts with classmates, but sharing specific implementation details is strictly forbidden.

  • The use of AI-generated code (e.g., ChatGPT, Copilot) is not permitted unless explicitly allowed by the instructor for this assignment.

  • Use modern C++17 and follow the C++ Core Guidelines.

Warning

Respect the header/implementation contract.

  • Templates must be defined entirely in .hpp files.

  • Non-templates: declare in .hpp and implement in .cpp.

  • Do not change function signatures provided in the instructions unless explicitly stated.

Note

Avoid “Magic Numbers.” Replace hard-coded values with named constexpr constants (e.g., velocity limit, default link lengths, sampling steps). This improves readability and maintainability and will be graded under Code Quality.

Starter Project

  • Use the course’s Assignment 3 starter (rwa3_starter) from the course GitHub (clone or pull the latest).

  • The starter includes the expected layout and a minimal CMakeLists.txt.

  • Complete all TODOs in each file.

  • Complete all Doxygen comment blocks provided in the source and header files. Each comment has been pre-generated as a template; ensure that every description, parameter, and return value is clearly documented.

    • Here is an example from main.cpp that you need to complete:

     1/**
 2* @file main.cpp
 3* @author your name (you@domain.com)
 4* @brief
 5* @version 0.1
 6* @date 2025-10-25
 7*
 8* @copyright Copyright (c) 2025
 9*
10*/

Submission Requirements

  • Develop your solution in your private repository or local workspace.

  • Ensure your code compiles without warnings.

  • Final submission:

    • Remove unused headers and dead code (commented code).

    • Zip the entire project (source + CMake files).

    • Name the archive: rwa3_firstname_lastname.zip.

    • Upload the zip to Canvas before the deadline.

Your submission must include:

  • CMakeLists.txt (properly configured for C++17 and warnings)

  • All source files from the Starter Project section

  • A program that runs and produces output similar to the Example Terminal Output section

Tip

Self-check before submitting

  • Clean build (delete build/), reconfigure, rebuild, run.

  • Verify the printed trajectory counts, velocity clamping, and end-effector samples.

  • Ensure function/templates live in the correct files per the contract.

Concept Reference

Forward Kinematics

Forward kinematics computes the end-effector position from a known set of joint angles. It answers the question: “Where is the robot’s tool tip given the current joint configuration?”

For a 2-DOF planar arm, the link lengths are \(L_1\) and \(L_2\), and the joint angles are \(\theta_1\) and \(\theta_2\). The first joint angle \(\theta_1\) is measured between the x-axis and the first link \(L_1\), while the second joint angle \(\theta_2\) is measured between the first and second links.

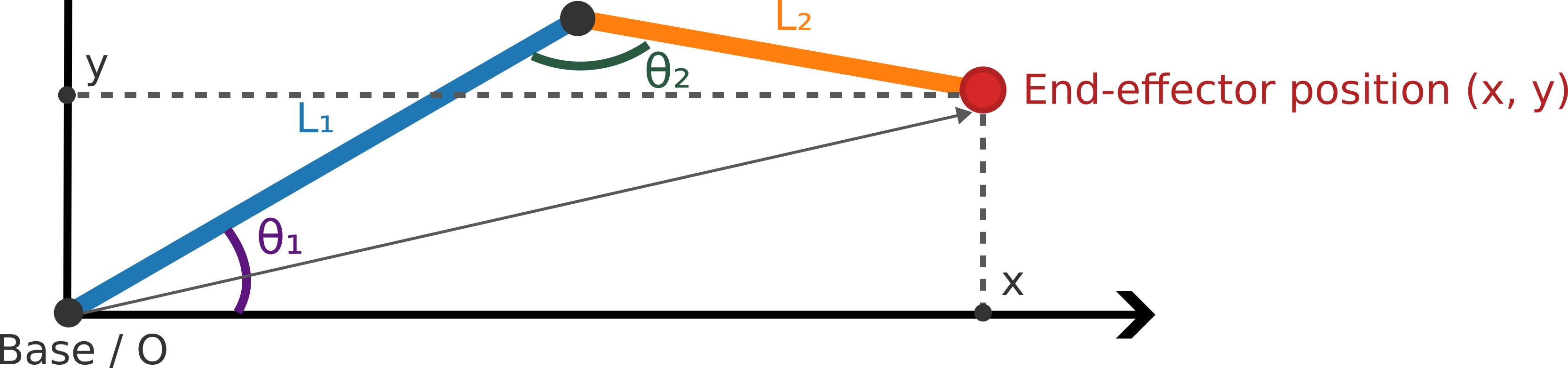

Forward kinematics of a 2-DOF planar arm

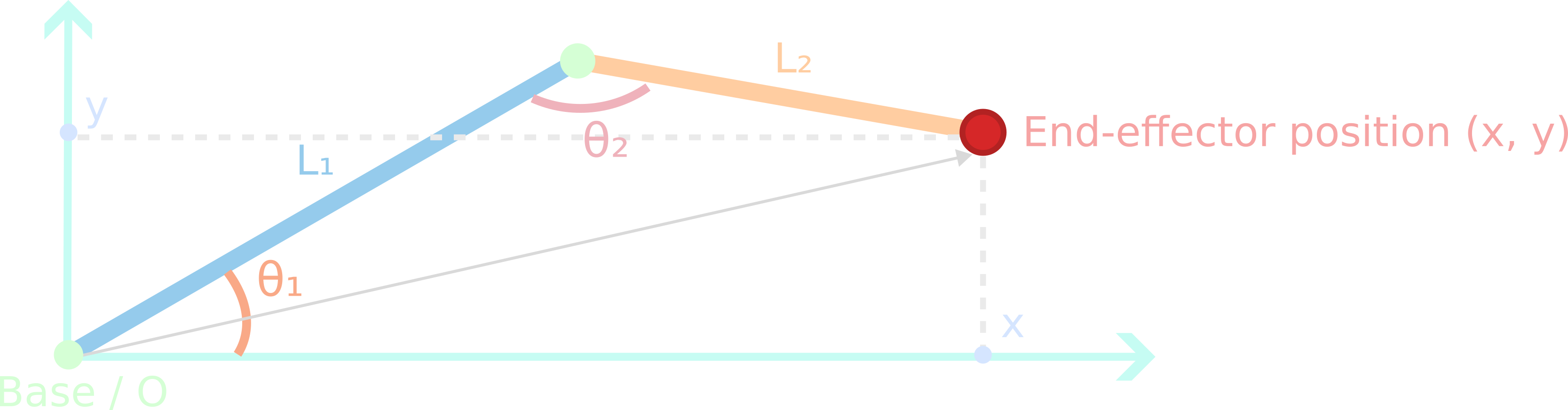

Forward kinematics of a 2-DOF planar arm (dark theme)

The end-effector position \((x, y)\) is calculated as:

\[x = L_1\cos(\theta_1) + L_2\cos(\theta_1 + \theta_2), \quad y = L_1\sin(\theta_1) + L_2\sin(\theta_1 + \theta_2)\]

This equation provides the Cartesian position of the end-effector and is essential for determining reachability, validating motion commands, and visualizing robot configurations.

Smooth Linear Trajectory

A trajectory is a sequence of robot states that defines how a robot moves from one configuration to another over time. A smooth linear trajectory ensures continuous, predictable motion without sudden jumps.

In this assignment, you will:

  • Linearly interpolate joint angles between the start and goal positions using a scalar \(\alpha \in [0,1]\).

  • Compute joint velocities corresponding to the rate of change in joint angles.

This process simulates a motion planner that generates intermediate waypoints for smooth robot motion.

Velocity-Limit Filter

Real robots must respect joint velocity constraints to prevent mechanical stress or instability. The velocity-limit filter ensures each joint’s angular velocity remains within safe limits (\(|d\theta| \le 1.0\) rad/s).

You will implement this filter as a lambda function, which:

  • Takes a JointState as input.

  • Checks its joint velocities.

  • Clamps them to the allowed maximum if necessary.

  • Returns the filtered JointState.

This demonstrates how to use lambda expressions for inline, real-time control operations.

Task 1 - Robot State POD Structs (6 pts)

Objective: Define the core data structures representing the robot’s joint states and end-effector pose.

Instructions:

  1. Define a JointState struct containing:

    • theta1 and theta2: joint angles (in radians).

    • dtheta1 and dtheta2: joint velocities (in radians per second).

  2. Use default member initializers for velocities:

    struct JointState {
    double theta1;     // radians
    double theta2;     // radians
    double dtheta1 = 0.0;  // Default velocity
    double dtheta2 = 0.0;  // Default velocity
};

    This allows:

    JointState q{M_PI/4, -M_PI/6};  // velocities default to 0.0

  3. Define an EndEffectorPose struct containing x and y (in meters).

  4. Implement void print_joint_state(const JointState&) in robot_types.cpp to print joint values and velocities clearly.

  5. Demonstrate aggregate initialization (no constructors).

Task 2 - Forward Kinematics Template (8 pts)

Objective: Compute the robot’s end-effector position from its joint angles.

Instructions:

  1. Implement forward_kinematics() as a templated function in robot_kinematics.hpp.

    • Input: any type with members theta1 and theta2.

    • Output: an EndEffectorPose with (x, y) coordinates.

  2. Use <cmath> functions (std::cos, std::sin).

  3. Return the computed pose.

Implementation Example:

#pragma once
#include "robot_types.hpp"
#include <cmath>

template <typename State>
EndEffectorPose forward_kinematics(const State& s,
                                   double L1 = 0.5,
                                   double L2 = 0.3) {
    EndEffectorPose pose;
    // pose.x = ??;
    // pose.y = ??;
    return pose;
}

Task 3 - Linear Trajectory and Velocity Filtering (8 pts)

Objective: Generate intermediate robot states between a start and goal configuration, and apply a velocity-limit filter.

Instructions:

  1. Implement interpolate_linear() (templated) in robot_control.hpp:

    • Input: start and goal states, scalar \(\alpha \in [0,1]\).

    • Output: interpolated State.

    • Behavior:

      • Interpolates theta1 and theta2 linearly.

      • Computes dtheta1 and dtheta2 proportionally to the angle change.

  2. Implement apply_filter() in robot_control.cpp:

    • Input: std::vector<JointState>& and std::function<JointState(const JointState&)>.

    • Apply the filter in-place to each element.

  3. In main.cpp, define a lambda that limits joint velocities (\(|d\theta| \le 1.0\) rad/s) and pass it to apply_filter().

Pseudocode (for reasoning, not code)

The linear interpolation of angles is defined by:

\[\theta_1(\alpha) = \theta_{1}^{\text{start}} + \alpha \left( \theta_{1}^{\text{goal}} - \theta_{1}^{\text{start}} \right), \qquad \theta_2(\alpha) = \theta_{2}^{\text{start}} + \alpha \left( \theta_{2}^{\text{goal}} - \theta_{2}^{\text{start}} \right)\]

A simple proportional velocity assignment may be based on the angle change over the interpolation span:

\[d\theta_1(\alpha) \propto \left( \theta_{1}^{\text{goal}} - \theta_{1}^{\text{start}} \right), \qquad d\theta_2(\alpha) \propto \left( \theta_{2}^{\text{goal}} - \theta_{2}^{\text{start}} \right)\]

Velocity clamping ensures joint rates stay within the bound \(|d\theta| \le 1.0\):

\[d\theta \leftarrow \operatorname{sign}(d\theta)\,\min\!\left(|d\theta|,\, 1.0\right)\]

Pseudocode: interpolate_linear(start, goal, α)

INPUT: start (\(\theta_1\), \(\theta_2\), \(d\theta_1\), \(d\theta_2\)),
goal (\(\theta_1\), \(\theta_2\), \(d\theta_1\), \(d\theta_2\)),
\(\alpha\) in [0, 1]

1) \(\alpha \leftarrow \text{clamp}(\alpha, 0, 1)\)

2) \(out.\theta_1 \leftarrow \text{start}.\theta_1 + \alpha \times (\text{goal}.\theta_1 - \text{start}.\theta_1)\)
\(out.\theta_2 \leftarrow \text{start}.\theta_2 + \alpha \times (\text{goal}.\theta_2 - \text{start}.\theta_2)\)

3) \(\Delta\theta_1 \leftarrow (\text{goal}.\theta_1 - \text{start}.\theta_1)\)
\(\Delta\theta_2 \leftarrow (\text{goal}.\theta_2 - \text{start}.\theta_2)\)

4) Assign velocities proportional to \(\Delta\theta\):
\(out.d\theta_1 \leftarrow k \times \Delta\theta_1\)
\(out.d\theta_2 \leftarrow k \times \Delta\theta_2\)

5) RETURN \(out\)

Pseudocode: apply_filter(traj, filter)

INPUT: traj: vector of JointState
filter: function JointState \(\rightarrow\) JointState

FOR each index \(i\) in \([0 \dots \text{traj.size()}-1]\):
\(\text{traj}[i] \leftarrow \text{filter}(\text{traj}[i])\)

Pseudocode Lambda: clamp_to_limit(v, limit)

IF \(v > \text{limit}\):
RETURN \(\text{limit}\)
IF \(v < -\text{limit}\):
RETURN \(-\text{limit}\)
RETURN \(v\)

Pseudocode: Lambda: clamp_vel(s)

INPUT: s (JointState)
RETURNS: JointState

\(out \leftarrow s\)
\(out.d\theta_1 \leftarrow \text{clamp_to_limit}(out.d\theta_1, 1.0)\)
\(out.d\theta_2 \leftarrow \text{clamp_to_limit}(out.d\theta_2, 1.0)\)
RETURN \(out\)

Task 4 - Trajectory Management with Smart Pointers (8 pts)

Objective: Integrate all components into a single simulation demonstrating motion planning, filtering, and memory safety.

Instructions:

  1. Use std::make_unique to create a vector of JointState representing the trajectory.

  2. Generate 21 states using interpolate_linear() (from \(\alpha=0\) to 1 in steps of 0.05).

  3. Apply the velocity filter using apply_filter().

  4. Use std::make_unique to create a vector of EndEffectorPose.

  5. For each filtered state, compute the end-effector pose using forward_kinematics().

  6. Print:

    • Trajectory size.

    • Start and end states (use print_joint_state()).

  7. Demonstrate that all resources are released automatically (RAII).

Task 5 - Joint Limit Validation (Optional, Not Graded)

In real robot systems, each joint can only move within a specific range of motion. For example, a shoulder joint may rotate roughly \(\pm180^{\circ}\), while an elbow joint might only bend between \(0^{\circ}\) and \(90^{\circ}\). Exceeding these limits could cause physical damage or unsafe motion.

For extra practice, you can create a small helper function that checks whether a given robot configuration stays within valid joint limits.

In plain terms:

  • Write a function that takes the current robot joint state as input.

  • Inside, check that both joint angles are within reasonable limits (for instance, between \(-\pi\) and \(\pi\)).

  • Return true if both joints are within limits, or false otherwise.

  • You can make this a templated helper function so that it works with any state type that has theta1 and theta2 members.

This is not graded, but it is a valuable addition for testing safety and reliability in your robot control code.

Example Terminal Output

=== Robot Kinematics & Control ===

Generating smooth trajectory between:
Start  -> θ1 = 0.0000 rad | θ2 = 0.0000 rad | dθ1 = 0.0000 rad/s | dθ2 = 0.0000 rad/s
Goal   -> θ1 = 0.7854 rad | θ2 = -0.5236 rad | dθ1 = 0.0000 rad/s | dθ2 = 0.0000 rad/s

Trajectory points: 21
Unfiltered Trajectory (every 5th point shown):
[0] θ1 = 0.0000 rad | θ2 = 0.0000 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[5] θ1 = 0.1963 rad | θ2 = -0.1309 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[10] θ1 = 0.3927 rad | θ2 = -0.2618 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[15] θ1 = 0.5890 rad | θ2 = -0.3927 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[20] θ1 = 0.7854 rad | θ2 = -0.5236 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s

Applying velocity-limit filter: |dθ| ≤ 1.0000 rad/s
-> Filter applied successfully, all values within limits.

Filtered Trajectory (first 5 points):
[0] θ1 = 0.0000 rad | θ2 = 0.0000 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[1] θ1 = 0.0393 rad | θ2 = -0.0262 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[2] θ1 = 0.0785 rad | θ2 = -0.0524 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[3] θ1 = 0.1178 rad | θ2 = -0.0785 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s
[4] θ1 = 0.1571 rad | θ2 = -0.1047 rad | dθ1 = 0.7854 rad/s | dθ2 = -0.5236 rad/s

Computing end-effector poses for filtered trajectory...
Link lengths: L1 = 0.50 m, L2 = 0.30 m

End-Effector Trajectory (all points):
[0]  x = 0.8000 m,  y = 0.0000 m
[1]  x = 0.7996 m,  y = 0.0236 m
[2]  x = 0.7984 m,  y = 0.0471 m
[3]  x = 0.7963 m,  y = 0.0705 m
[4]  x = 0.7934 m,  y = 0.0939 m
[5]  x = 0.7898 m,  y = 0.1172 m
[6]  x = 0.7853 m,  y = 0.1403 m
[7]  x = 0.7800 m,  y = 0.1632 m
[8]  x = 0.7739 m,  y = 0.1859 m
[9]  x = 0.7670 m,  y = 0.2083 m
[10]  x = 0.7594 m,  y = 0.2305 m
[11]  x = 0.7510 m,  y = 0.2524 m
[12]  x = 0.7418 m,  y = 0.2739 m
[13]  x = 0.7319 m,  y = 0.2951 m
[14]  x = 0.7213 m,  y = 0.3159 m
[15]  x = 0.7100 m,  y = 0.3363 m
[16]  x = 0.6980 m,  y = 0.3563 m
[17]  x = 0.6853 m,  y = 0.3758 m
[18]  x = 0.6719 m,  y = 0.3948 m
[19]  x = 0.6579 m,  y = 0.4132 m
[20]  x = 0.6433 m,  y = 0.4312 m


Summary
--------
• Total joint states: 21
• Velocity filter: active (|dθ| ≤ 1.0000)

Program finished successfully.

Code Quality and C++ Guidelines (6 pts)

Your code will be graded for adherence to C++ Core Guidelines:

  • No raw pointers (new or delete).

  • Correct ownership semantics using std::unique_ptr.

  • Const-correctness and pass-by-reference for non-owning parameters.

  • Uniform initialization ({}) used consistently.

  • Clean compilation with -Wall -Werror -Wextra -pedantic-errors.

  • Clear naming, concise comments, and documented units (radians, meters, rad/s).

Evaluation Rubric (36 pts)

  • Exceeds: Fully correct, robust, and idiomatic; anticipates edge cases.

  • Meets: Correct and idiomatic; minor issues that do not affect correctness.

  • Partial: Partially correct or missing important elements.

  • Insufficient: Incorrect, incomplete, or non-functional.

Note

Points for each sub-criterion are all-or-nothing unless otherwise noted. “Partial” earns half of the listed points for that sub-criterion when applicable.

Sub-criterion

Evidence of Exceeds / Meets / Partial / Insufficient

Pts

POD structs with appropriate fields

Exceeds/Meets: Correct fields; no invariants required; trivially copyable design. Partial: Missing a field or uses class features that break POD intent. Insufficient: Wrong or unusable structure.

2

Default member initializers for all fields

Exceeds/Meets: Sensible defaults set in-class; no uninitialized state. Partial: Defaults incomplete. Insufficient: No defaults; UB risk.

2

Formatted printing (readable, labeled, consistent units)

Exceeds: Clear labels, alignment, and units; no std::endl misuse; newline ‘n’. Meets: Clear output; minor formatting nits. Partial/Insufficient: Hard to read or missing fields.

2

Sub-criterion

Evidence of Exceeds / Meets / Partial / Insufficient

Pts

Correct FK equations and frame conventions

Exceeds/Meets: Angles and link lengths used with correct trigonometry and ordering; frames documented. Partial: Minor sign or frame confusion with test mismatch. Insufficient: Incorrect mapping.

3

Generic template design (types, constants)

Exceeds: Template parameters or auto enable float/double; no unnecessary casts. Meets: Works for primary type with clean template signature. Partial/Insufficient: Hard-coded type or broken templating.

2

Numerical sanity and edge cases

Exceeds: Handles zero angles, extreme values, and boundary inputs; tests or asserts where appropriate. Meets: Works on nominal cases. Partial/Insufficient: Fails common cases.

2

Clear API and documentation

Exceeds/Meets: Function name, params, and returned pose are unambiguous; brief comment. Partial/Insufficient: Ambiguous or missing.

1

Sub-criterion

Evidence of Exceeds / Meets / Partial / Insufficient

Pts

Interpolation correctness with clamped \(\\alpha\)

Exceeds/Meets: Implements alpha = clamp(alpha, 0, 1); linear blend for all fields as specified. Partial: Forgets clamping or a field. Insufficient: Incorrect formula.

3

Velocity assignment proportional to \(\\Delta\\theta\)

Exceeds/Meets: Uses k * Δθ consistently; rationale or constant visible. Partial: Applies to one joint only or mixes units. Insufficient: Missing or wrong.

2

Filter application over trajectory (in-place transform)

Exceeds/Meets: Iterates safely over all states; no copies unless required; lambda friendly. Partial: Inefficient copying or off-by-one. Insufficient: Incorrect application.

2

Readability and test snippet

Exceeds/Meets: Small demo or asserts; clear variable names. Partial/Insufficient: Hard to follow.

1

Sub-criterion

Evidence of Exceeds / Meets / Partial / Insufficient

Pts

Correct std::unique_ptr ownership

Exceeds/Meets: Uses std::make_unique; no raw new in user code; reset only when justified. Partial: Mixed ownership patterns. Insufficient: Leaks or double-delete risks.

3

RAII integration and lifetime clarity

Exceeds/Meets: Resources released deterministically; no manual delete; scopes well defined. Partial: Lifetime unclear. Insufficient: Dangling usage.

2

Avoids anti-patterns

Exceeds/Meets: No std::move into same object; no copying unique_ptr; no naked owning raw pointers. Partial/Insufficient: One or more anti-patterns present.

2

Minimal, focused example

Exceeds/Meets: Short example that compiles; comments explain ownership. Partial/Insufficient: Confusing or non-compiling.

1

Checklist

Evidence

Pts

Warnings clean: -Wall -Wextra -pedantic-errors

Builds without warnings; uses ‘n’ instead of std::endl.

2

Naming, constants, and initialization

Consistent snake_case for vars; constexpr or const for magic numbers; uniform initialization {}.

2

Documentation and structure

Doxygen header present; files named per spec; functions short and single-purpose.

2

Issue

Penalty

Wrong file naming or extra files in archive

−4 pts each

Project does not compile or compiles with warnings/errors

−5 pts

Missing or incomplete Doxygen header

−3 pts

Late submission (UMD policy)

20% per day (max 3 days); after 3 days, 0

Learning Outcomes

Upon completing this assignment, you will:

  • Implement forward kinematics using modern C++ templates.

  • Generate smooth robot trajectories with interpolation and filtering.

  • Apply lambda functions and std::function for modular control.

  • Use smart pointers to ensure memory safety and proper ownership.

  • Write maintainable, standard-compliant C++ code following the C++ Core Guidelines.

References and Further Reading
